Aperçu /Produits/Machine d'impression de label/216mm Digital Label UV Press with 1200*600 dpi Resolution and 10m/min - 75m/min Printing Speed

216mm Digital Label UV Press with 1200*600 dpi Resolution and 10m/min - 75m/min Printing Speed

1 ensemble
MOQ
Négociable
Prix
216mm Digital Label UV Press with 1200*600 dpi Resolution and 10m/min - 75m/min Printing Speed
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Résolution: 1200*600 dpi
Vitesse d'impression: 10 m/min - 75 m/min
Système variable d'image: Pdf, système facultatif de code barres
Substrats: Films en PET,papiers revêtus,papiers synthétiques,papiers d'art,etc.
Garantie: D'un an
Poids: 2800kgs
Couleurs d'impression: Les produits doivent être présentés dans le format CMYK/W+CMYK/W+W+CMYK.
Mettre en évidence:

216mm Digital Label UV Press

,

1200*600 dpi Label Printing Machine

,

10m/min - 75m/min UV Inkjet Label Printer
Informations de base
Lieu d'origine: CHINE
Nom de marque: EcooGraphix
Certification: CE
Numéro de modèle: Étiquette SMART
Document: Digital Label UV Inkjet Pri...ix.pdf
Conditions de paiement et expédition
Détails d'emballage: Emballage d'exportation standard
Délai de livraison: 30 jours
Conditions de paiement: T / t
Capacité d'approvisionnement: 300set
Description de produit
CMYK and White 216mm Digital Label UV Press
6 Colors Digital Label Machine UV Inkjet Label Printer
The Label Smart is an easy-to-operate entry-level digital label press offering low investment cost with high efficiency and effectiveness. This versatile machine handles a wide range of materials including films (PET, BOPP, PE, BOPA), label papers (PE label), pre-pressed materials (PET, ALU, PE), and various paper types, helping customers diversify their label market offerings.
The system features large roll feeding, anti-collision induction, web guide, double-sided dust removal, corona unit, mark tracking electric eye, LED curing, intelligent industrial control, and water cooling system. Equipped with imported high-precision industrial nozzles, it offers four-color configuration options to meet specific customer requirements.
With white ink configuration, the press achieves maximum full-color printing speeds of 50m/min at resolutions up to 600×1200dpi, delivering accurate, stable colors across various printing materials. Using Agfa environmentally friendly ink, it produces vibrant, odor-free prints.
Advantages of UV Inkjet Printing Press
  • 6-color digital printing covering 95% of Pantone colors
  • New upgraded design for simple operation
  • Fully automatic integrated program to improve efficiency
  • Built-in quality inspection device for real-time color inspection and quality control
  • Remote operation and maintenance support
  • Upgraded printing control software to optimize production process
Model Label Smart 108S Label Smart 216S Label Smart 330S
Printing Technology Piezoelectric Inkjet
Print Method Roll to Roll, One-Side
Color Configuration CMYK/W+CMYK/W+W+CMYK
Number Of Channels 6
Maximum Speed 50 m/min (CMYK); 25 m/min (CMYK + W)
Resolution 600×600dpi; 600×1200dpi
Ink Type UV Ink
Curing Method UV LED
Media Width 80-330mm
Maximum Print Width 108mm 216mm 324mm
Media Thickness 50-400 μm
Media Type PET, BOPP, PE, BOPA, PP, Coated paper, Synthetic paper, Art paper, etc
Maximum Media Roll Diameter 600mm
Power Supply 380V
Power 15kW 30kW
Compressed air
Compressed air ＞6.5MPa
Air consumption ＞10L/min
Environment
Operation Temperature 20 - 27°C
Operation Humidity 40 - 70% Relative humidity
216mm Digital Label UV Press with 1200*600 dpi Resolution and 10m/min - 75m/min Printing Speed 0
216mm Digital Label UV Press with 1200*600 dpi Resolution and 10m/min - 75m/min Printing Speed 1
216mm Digital Label UV Press with 1200*600 dpi Resolution and 10m/min - 75m/min Printing Speed 2
216mm Digital Label UV Press with 1200*600 dpi Resolution and 10m/min - 75m/min Printing Speed 3
216mm Digital Label UV Press with 1200*600 dpi Resolution and 10m/min - 75m/min Printing Speed 4

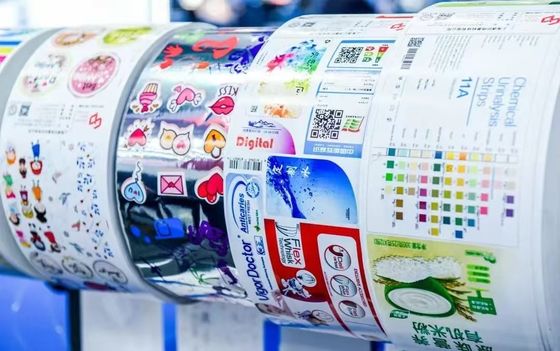

Samples:
216mm Digital Label UV Press with 1200*600 dpi Resolution and 10m/min - 75m/min Printing Speed 5
216mm Digital Label UV Press with 1200*600 dpi Resolution and 10m/min - 75m/min Printing Speed 6
