High Speed Automatic UV Varnishing Machine with Auto-Feed and Curing System for 620×450mm Sheets

1 ensemble
MOQ
Négociable
Prix
High Speed Automatic UV Varnishing Machine with Auto-Feed and Curing System for 620×450mm Sheets
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Nom du produit: Machine UV de revêtement et de vernissage
Application: Imprimée de papier, carton
Taille de Max.Sheet: 620×450mm
Taille de Min.sheet: 260×190mm
Poids de feuille: 60-350G/M2
Vitesse de production: 5500 feuilles/heure
Pouvoir: 15 kW
Lampe UV: 2pcsx5.6kw
Poids: 1200 kg
Dimension: 2950x1200x1450mm
Mettre en évidence:

620×450mm UV Varnishing Machine

,

Auto-Feed UV Varnishing Machine

,

Curing System UV Coating Machine
Informations de base
Lieu d'origine: Chine
Nom de marque: EcooGraphix
Certification: CE, ISO900
Numéro de modèle: ECOO CF-620A
Conditions de paiement et expédition
Détails d'emballage: Paquet d'exportation standard : Carton de Polywood
Conditions de paiement: LC, T/T
Capacité d'approvisionnement: 500 sets par an
Description de produit

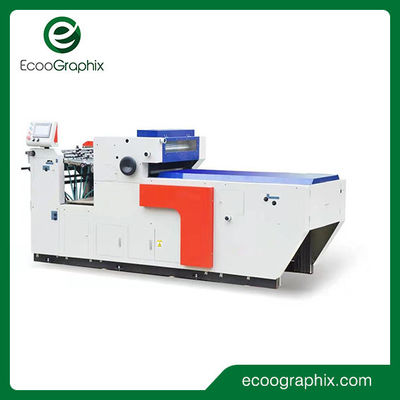

High Speed Automatic UV Varnishing Machine For Printing And Packaging Ecoo CF-620A
Automatic Spot and Overall UV Coating Machine - ECOOO CF-620A
The Ecoo CF 620A UV coating machine offers spot UV and overall UV coating for various printed and packaging products including books, posters, and adhesive stickers. Equipped with an auto-feed system, vanishing system, curing system, and auto-delivery system, this machine enhances the quality and value of printed materials, leading to increased profitability for printing companies. Renowned for its high speed and efficiency, it has earned accolades from clients worldwide.
Specification
Model Ecoo CF-620A
Max.sheet size 620*450mm
MIN.sheet size 260*190mm
Sheet weight 60-350g/m2
Production speed 5500 sheet/hour
Power 15KW
UV lamp 2pcsx5.6kw
Weight 1200KG
Dimension 2950*1200*1450mm
High Speed Automatic UV Varnishing Machine with Auto-Feed and Curing System for 620×450mm Sheets 0
Producing And Packaging
High Speed Automatic UV Varnishing Machine with Auto-Feed and Curing System for 620×450mm Sheets 1 High Speed Automatic UV Varnishing Machine with Auto-Feed and Curing System for 620×450mm Sheets 2 High Speed Automatic UV Varnishing Machine with Auto-Feed and Curing System for 620×450mm Sheets 3 High Speed Automatic UV Varnishing Machine with Auto-Feed and Curing System for 620×450mm Sheets 4 High Speed Automatic UV Varnishing Machine with Auto-Feed and Curing System for 620×450mm Sheets 5 High Speed Automatic UV Varnishing Machine with Auto-Feed and Curing System for 620×450mm Sheets 6 High Speed Automatic UV Varnishing Machine with Auto-Feed and Curing System for 620×450mm Sheets 7
FAQ
1. What are your main products?
We Ecoographix is a specialized supplier of printing machines and consumables. We cover both digital printing and offset printing, including prepress, pressroom and post press, focusing on packaging printing and book printing. We have hundreds of users all over the world. We bring forward top quality of Chinese printing products to meet diversified printing requirements.
2. Where is your factory?
Our sale office is in Hangzhou, one hour by train away from Shanghai. Our factories are in Shanghai, Wenzhou, Suzhou and Nanyang.
3. What is your warranty?
Normally 1 year.
4. Can you also supply the software?
Yes
5. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
